Installing the speaker trim on the center bass

NOTE: Description is for left component only. Procedure on the right side is identical.

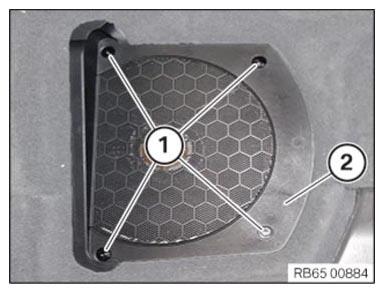

• Attach and correctly position the speaker trims on the central bass (2).
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Central bass speaker trim
Screw	Tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
