Installing the dashboard trim

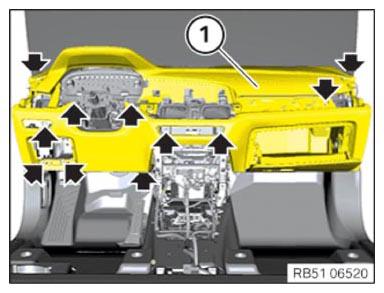

• Carefully insert dashboard trim (1)  into the vehicle. Feed in cables while doing so.
• Carefully guide in dashboard trim (1)  further and position it correctly.
• Ensure that no cables are jammed.
• Tighten screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Dashboard
  screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

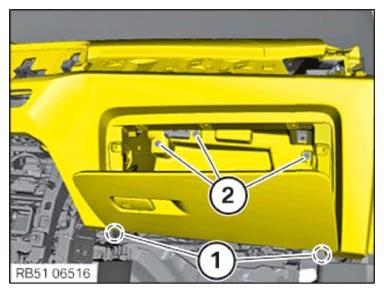

• Tighten the screws (2)  in the glove compartment.
  TIGHTENING TORQUES SPECIFICATION



  Dashboard
  screw	Tightening torque	1.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  below the glove compartment.
  TIGHTENING TORQUES SPECIFICATION



  Dashboard
  screw	Tightening torque	1.8 Nm

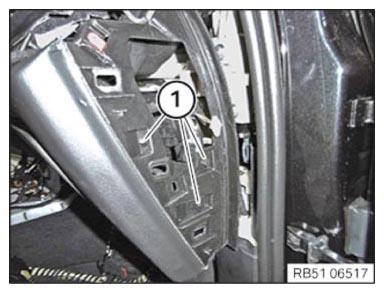

• Attach cable bracket (1)  to the dashboard trim from the inside.

  Courtesy of BMW OF NORTH AMERICA, INC.

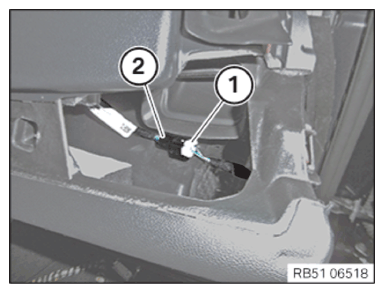

• Connect and lock connector (2)  on the glove compartment.
• Connect and lock connector (1)  on the front passenger airbag.

  Courtesy of BMW OF NORTH AMERICA, INC.

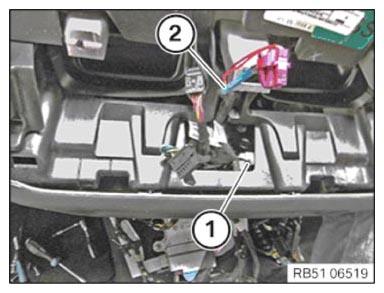

• Connect connectors (1)  and lock.
• Secure wiring harness (2)  to the dashboard trim.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE GLOVE BOX LIGHT .
• Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING AUDIO CONTROL UNIT .
• Refer to INSTALLING THE LIGHT OPERATING UNIT .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
• Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
• Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
• Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
• Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
