Installing the steering wheel (sports steering wheel)

Check the neutral position of the coil spring

Check

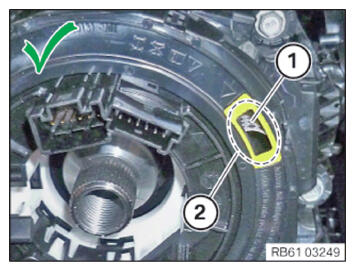

• Version A:

  Check the mark (1) on the coil spring in the inspection glass (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The mark (1) on the coil spring is not visible.

  Measure

  • Turn the coil spring cassette until the mark (1) on the coil spring is visible in the inspection glass (2).

  Check

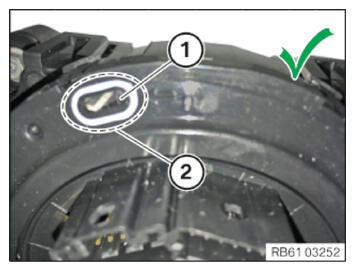

• Version B:

  Check the mark (1) on the coil spring in the inspection glass (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The mark (1) on the coil spring is not visible.

  Measure

  • Turn the coil spring cassette until the mark (1) on the coil spring is visible in the inspection glass (2).

  Check

• Possibly, a microencapsulated screw (3) has been installed.
• Check the screw connection.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Screw (3) is micro-encapsulated.

  Measure

  • Clean thread in steering column.

    Replace the screw (3).

    Parts:  Screw

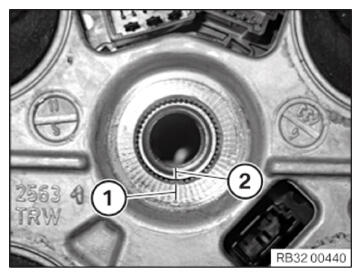

• Align mark (1) on steering wheel to mark (2) on steering column.
• Connect steering wheel.

  Courtesy of BMW OF NORTH AMERICA, INC.

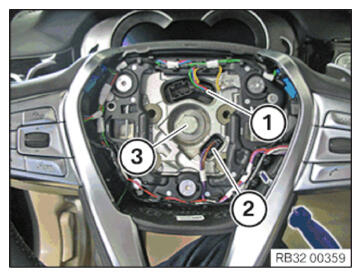

• Connect plug (1).
• If installed: Connect plug (2).
• Tighten down screw (3).
  TIGHTENING TORQUE SPECIFICATIONS



  Steering wheel to steering column
  M14 Only with microencapsulated screw: Replace screw.	tightening torque	62.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
• Refer to CHECKING THE AIRBAG FOR FUNCTION .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
