Install the instrument cluster trim

Check

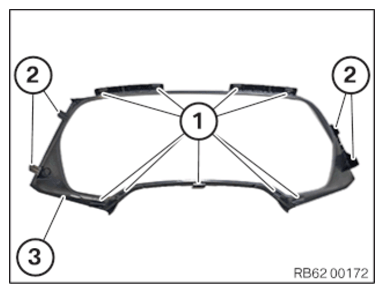

• Check the trim detailings (1) and the guides (2) on the trim (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The trim detailings (1) or the guides (2) are damaged.

Measure

• Replace trim (3).

Parts:  trim

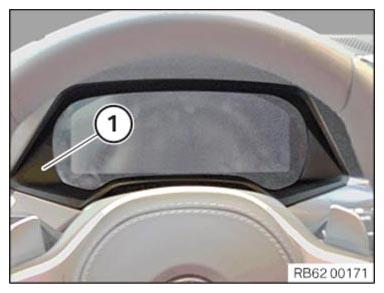

• Position trim (1) and clip in.

Courtesy of BMW OF NORTH AMERICA, INC.
