Removing the intake plenum

Preliminary work

• Refer to MOVING THE HOOD TO THE SERVICE POSITION .
• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING ACOUSTIC COVER AT REAR .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE STIFFENING PLATE .
• Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
• Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to CONNECTING THE COOLANT LINE TO THE AUXILIARY COOLANT PUMP .
• Refer to REMOVING LOW-TEMPERATURE COOLANT EXPANSION TANK .
• Refer to REMOVING TANK VENT VALVE .

• Loosen screw (1).
• Feed out and remove the tank vent line (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and release the plug connections (1).
• Unlock the locks (2).
• Guide tank ventilation line (3) out of clamp (4) and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the locks (1).
• Feed the tank ventilation line (2) out and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the locks (1).
• Guide out the wiring harness section (2) for the sensor system 2 and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Feed out charge air line (2) and place to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock plug connection (1) and disconnect.
• Loosen clamp (2).
• Thread off coolant line (3) and place to the side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release nut (1).
• Pull the positive battery cable (2) out and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Loosen clamp (2).
• Pull the positive battery cable (3) out and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock the locks (arrows).
• Feed out the wiring harness section (1) for the injectors and ignition coils and put to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen clamp (1).
• Pull the positive battery cable (2) out and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and release plug connection (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide tank ventilation line (1) out of clamp (2) and place it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out the wiring harness section (1) for the injectors and ignition coils from the cylinder head cover (2) and put to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and loosen coolant line (1).
• Catch and dispose of escaping coolant.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and loosen coolant line (1).
• Catch and dispose of escaping coolant.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and loosen coolant line (1).
• Catch and dispose of escaping coolant.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release screws in the sequence (7) to (1) on the intake plenum (A).
  Fig 1: Intake Plenum Screws Loosening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
  NOTE: RISK OF DAMAGE
  Coolant leaking from the starter motor generator.
  Damage and loss of function of the starter motor generator.

  • Cover the starter motor generator with suitable, watertight auxiliary materials.
  • Close off line connections with seal plugs.
  • If necessary: Rinse off the coolant leaking from starter motor generator with at least 1 l of water.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slightly lift the intake plenum (1).
• Collect and dispose of escaping coolant at the openings (2) on the intake plenum (1).
  NOTE: TECHNICAL INFORMATION
  Conduct the following operation with the assistance of a second person.
• Loosen clamp (1).
• Guide out the intake plenum (2) and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Empty the remaining coolant (2) from the intake plenum (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

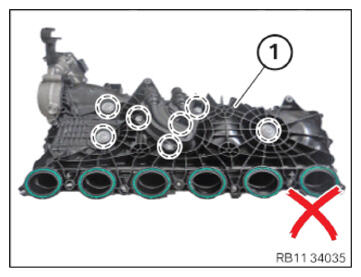

  NOTE: TECHNICAL INFORMATION
  The tension rod screws and mounting bolts from the connecting neck on the intake plenum are not  allowed to be opened.
• Do not  release screws in the marked area  on the intake plenum (1).

Courtesy of BMW OF NORTH AMERICA, INC.
