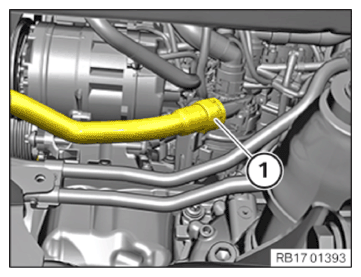

Connecting the coolant line to the auxiliary coolant pump

• Connect the coolant line (1) to the auxiliary coolant pump and lock it audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
