Remove low-temperature coolant expansion tank
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION

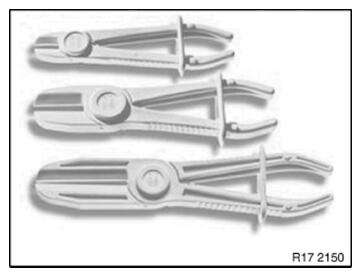

Use commercially available pinch-off tools to pinch off the coolant hoses.
Use commercially available pinch-off tools to pinch off the coolant hoses.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Use commercially available disconnection tools to disconnect the coolant line.

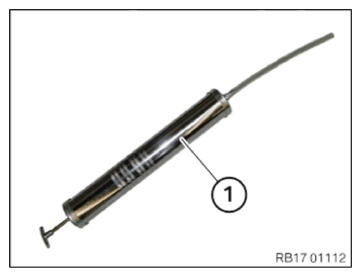

- Use commercially available syringe (1) or a suitable tool to empty the coolant expansion tank.

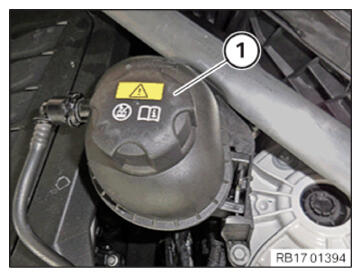

- Loosen sealing cap (1).
- Suction out coolant with a standard pump
and dispose of it.

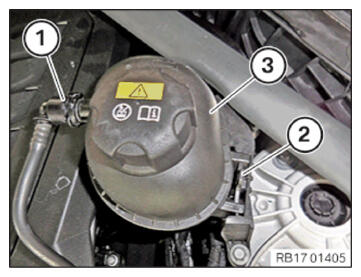

- Unlock and disconnect the coolant line (1).
- Unlock lock (2).
- Release the low-temperature coolant expansion tank (3) from the holder.NOTE: TECHNICAL INFORMATION

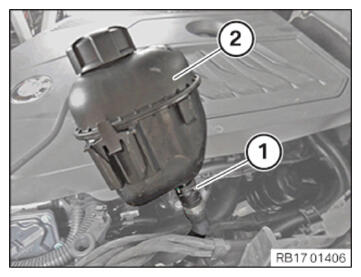

Only flexible hose pipes may be clamped off. - Pinch off the coolant line (1) with a standard disconnection tool.
- Unlock and disconnect the coolant line (1).
- Catch and dispose of leakage coolant.
- Guide out low-temperature coolant expansion tank (2) and remove.
