Installing both exhaust manifolds

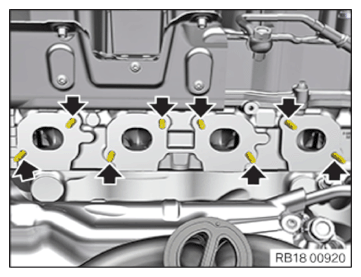

• Replace stud bolts (arrows).

  Parts:  Stud bolts

• Tighten stud bolts (arrows).
  TIGHTENING TORQUE SPECIFICATIONS



  Stud bolt on cylinder head
  M8x50	Replace the stud bolt. tightening torque	20 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the surface.
  The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

  • Do not use any metal-cutting tools.
  NOTE: To provide a better overview: Illustration of surrounding parts removed.

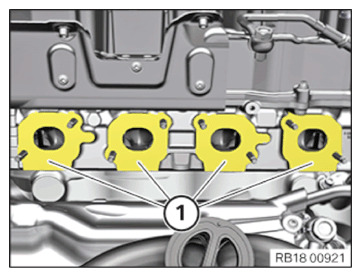

• Clean the sealing surfaces (1)  on the cylinder head using special tool 0 495 102 (11 4 470) .

  Courtesy of BMW OF NORTH AMERICA, INC.

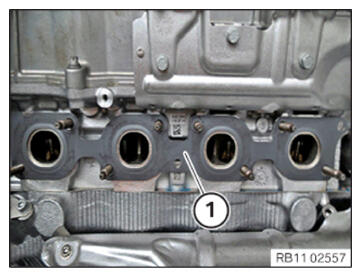

• Replace the seal (1)  .

  Parts:  Seal

  Courtesy of BMW OF NORTH AMERICA, INC.

• The installation position of the seal (1) must be adhered to.

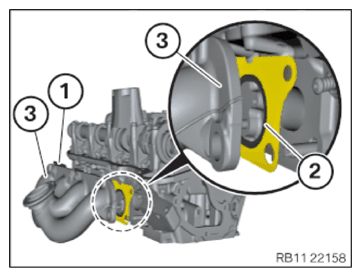

  The seal (1)  must be installed with the side of the bead (2)  (recess of the seal) facing the exhaust manifold (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

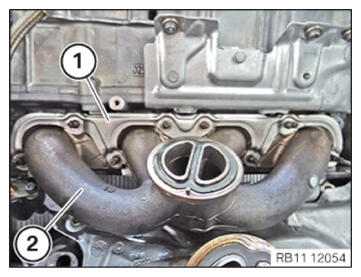

• Insert and install the exhaust manifold (2)  .
• Position the sliding rail (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques.
  Failure to comply with the regulations can lead to leaks and damage.
• Replace nuts (1)  to (8)  .

  Parts:  Nuts

• Tighten the nuts in the sequence (1)  to (8)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust manifold to cylinder head
  M8 Replace nuts.	tightening torque	15 Nm

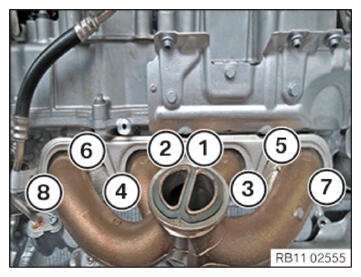

  Fig 1: Exhaust Manifold Nuts Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
