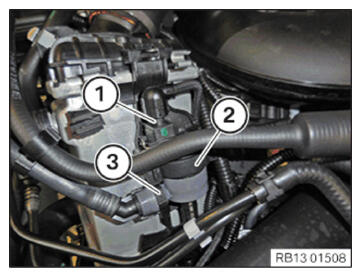

Install left tank vent valve

• Guide the tank vent valve (2) in to the mount and install.
• Connect and lock tank vent line (3).

  The tank vent line (3) must engage audibly.

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

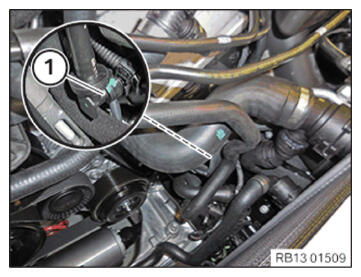

• Connect tank vent line (1) to the left intake plenum under the throttle body and lock.

  The tank vent line (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: For a better overview the removed condition is shown here.

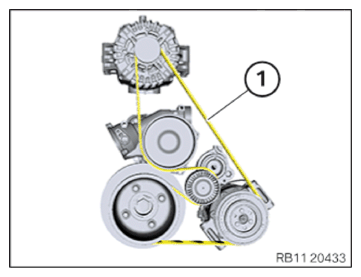

• Fit drive belt (1) on the air conditioning compressor.
• Check that the drive belt (1) is seated correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

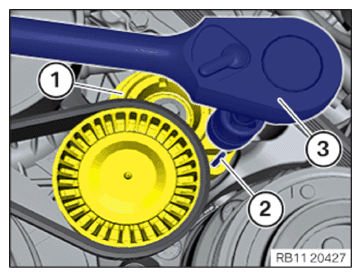

• Maintain the preload of the belt tensioner (1) using a suitable socket wrench (3).
• Remove the special tool 0 496 268 (11 0 390) (2) from the belt tensioner.

  Courtesy of BMW OF NORTH AMERICA, INC.

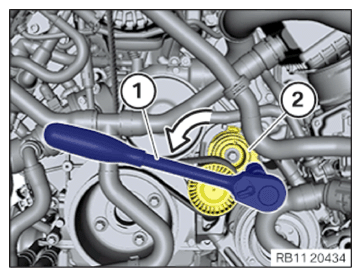

• Loosen the belt tensioner (2) counterclockwise using a suitable socket wrench (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE RIGHT AND LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING BOTH INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
