Installing the right front carpet

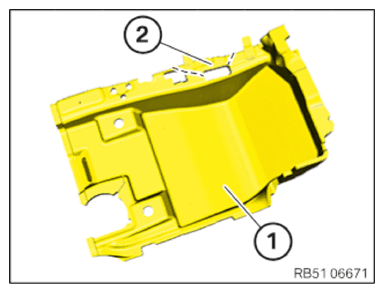

• Lay removed carpet on the new carpet (1)  and transfer cuts to new carpet (1)  .
• Cut off the highlighted area (2)  on the new carpet (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

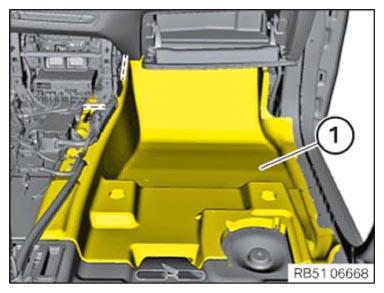

• Insert the carpet (1)  in the car.
• Make sure the carpet (1)  is positioned correctly at all adjacent parts and in area of heating and air-conditioning unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the holder (2)  and tighten the screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Center console holder at the center on body
  Hexagon screw	tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SPEAKER TRIM ON THE CENTER BASS .
• Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
• Refer to INSTALLING RIGHT FOOTWELL TRIM .
• Refer to INSTALLING THE FRONT RIGHT DOOR SILL COVER STRIP .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING RIGHT FRONT SEAT .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
