Install the center console
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

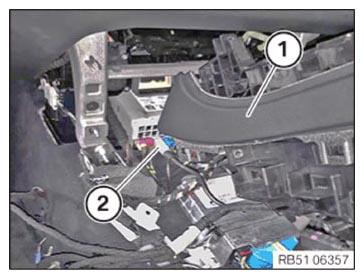

- Position center console (1).

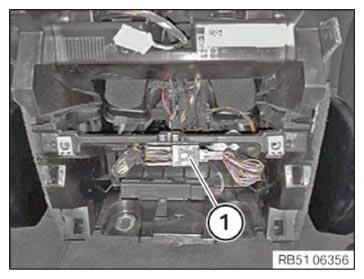

- Connect the connector (2) to the Head Unit High (HU-H) and lock.
- Correctly position the center console (1) and install.
While doing so, feed the remaining cables into the center console.

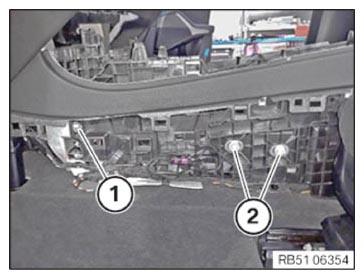

NOTE: Perform the steps on the right and left side. - Tighten the nuts (1) and bolts (2).TIGHTENING TORQUES SPECIFICATION

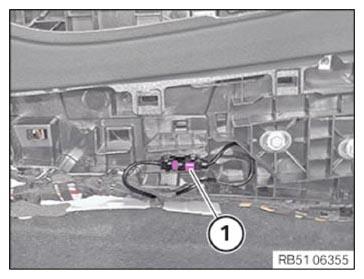

Center console to body M6x16 screw Tightening torque 4.6 Nm Nut M6 Tightening torque 4.6 Nm - Connect connectors (1) and lock.
- Connect the connector (1) to the right side of the center console and lock.

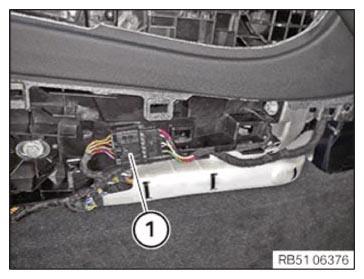

- Connect connectors (1) and lock.
- Hook the connector (1) into the holder.
- Carry out only for G05/G06/G18:

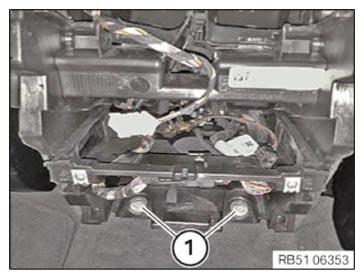

- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Center console to body M6x16 screw Tightening torque 4.6 Nm Nut M6 Tightening torque 4.6 Nm - Carry out only for G07:
- Guide in the mount for the cup holder (2) and position it correctly.

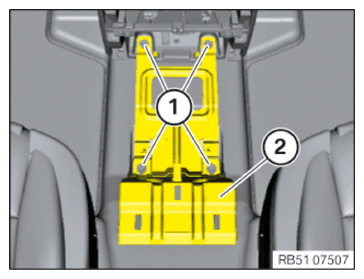

- Tighten down screws (1).
- Carry out only for G07:
- Attach the cup holder (2) and connect the connectors.
- Correctly position the cup holder (2) and engage it in the front clamps.

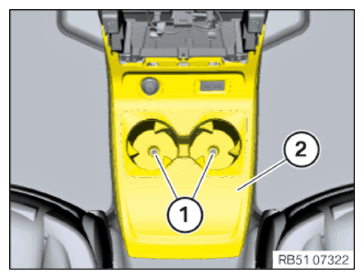

- Tighten down screws (1).
- Install the inserts in the cup holder (2).
Follow-up work
- Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to ACTIVATE VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
