Install right front seat
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install front seat
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
- Cover the door sill using protective covers.
NOTE:
RISK OF DAMAGE
Heavy component.
Heavy components can lead to injury or damage.
Heavy component.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

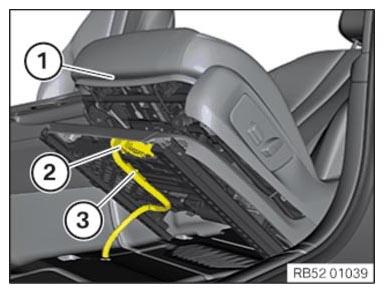

- Lift front seat (1) into the vehicle with the assistance of a support person.
- Place front seat (1) to the rear.
- Connect connectors (2) and lock.
- Check all plug connections for completeness, correct fit and locking where required.
- Attach the cable clip (3).

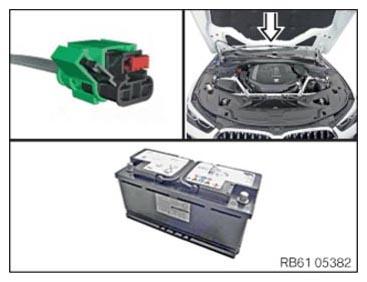

Activate vehicle-specific high-voltage or low-voltage vehicle electrical system
NOTE: TECHNICAL INFORMATION
Follow the vehicle-specific instructions described in the additional information.- Activate the vehicle electrical system as described in the additional information.
Activating the 48 V electrical system
Precondition
Ignition is switched off.
NOTE: RISK OF DAMAGE
Damage to the 48-V battery
If a 48-V battery disconnected from the on-board electrical system is activated, the battery electronics are damaged.- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.

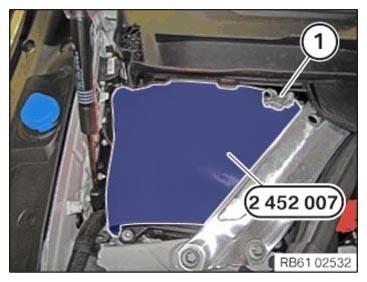

- Raise the battery ground cable.
- Remove special tool 2 452 007
.

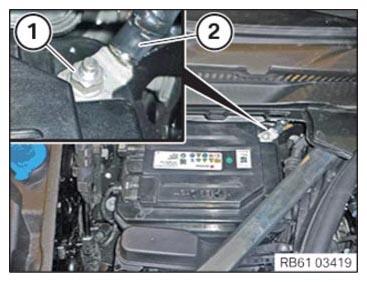

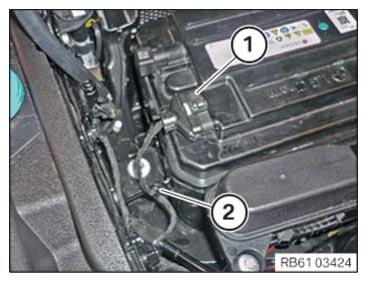

- Release the negative battery cable of the 48-V battery from the attachment.
- Position the negative battery cable of the 48-V battery on the negative battery terminal.
- Tighten nut (1).
TIGHTENING TORQUES SPECIFICATION
| Negative battery cable to 48-V battery | ||
| Nut M8 | Tightening torque | 19 Nm |
- Connect the connector of the CAN bus and lock it.
- Clip in clip.

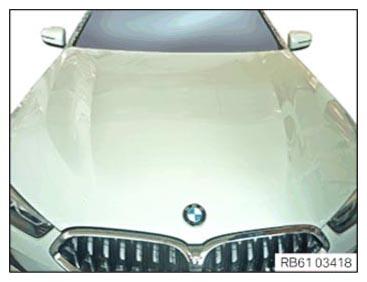

- Activate the 48 V electrical system by closing the hood.
Activation is automatic.

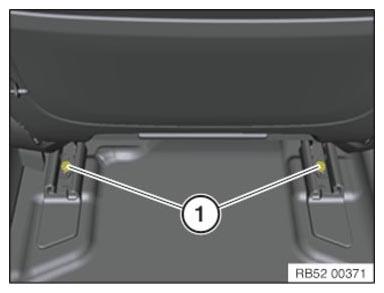

- Shift front seat rearwards.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Seat to body | ||
| Cheese head screw with collar Replace screw. |
Tightening torque | 42 Nm |

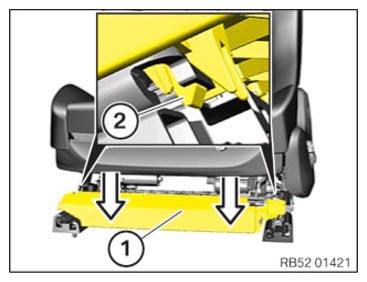

Installing the front seat rail trim
- Shift front seat rearwards all way back.
- Push on the front seat rail trims (1) from front and clip in at side.

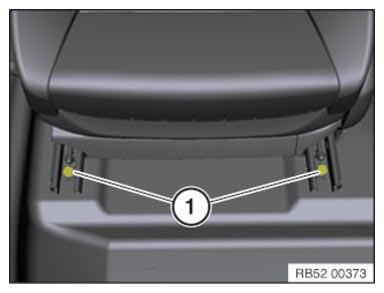

- Shift front seat forwards.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Seat to body | ||
| Cheese head screw with collar Replace screw. |
Tightening torque | 42 Nm |

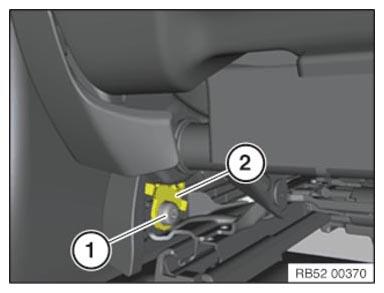

- Fully adjust the front seat to the front and top.
- Insert the end fitting (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Seat belt strap fitting to seat mechanism | ||
| M10 Replace screw. |
tightening torque | 42 Nm |

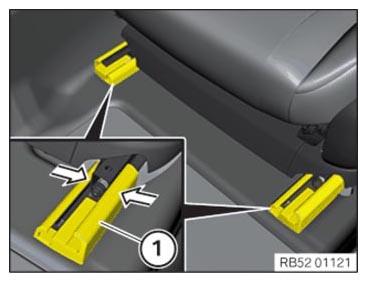

Installing the front seat rail cover
- Position the front seat rail cover (1) in the arrow direction.
The detents (2) must engage audibly.

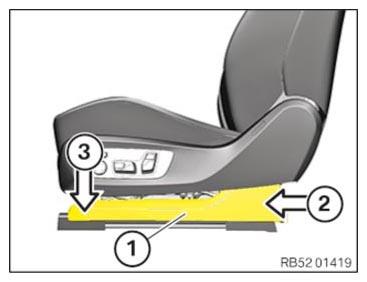

Installing the outer seat rail cover
- Position the outer seat rail cover (1) correctly in arrow direction (2).
- Snap-in the outer seat rail cover (1) in arrow direction (3).
