Installing the holder for the Digital Motor Electronics control unit on the right

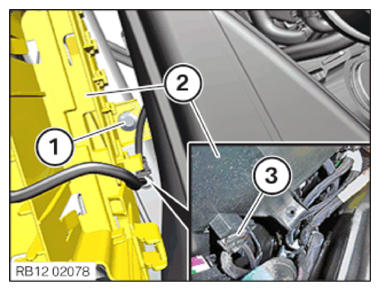

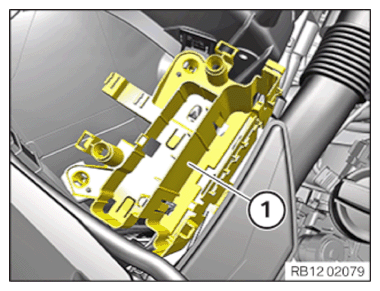

• Insert and position the bracket (1) for the DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure clamps (3).
• Install the bracket (2) for the DME control unit.
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Control unit holder
  Hexagon screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

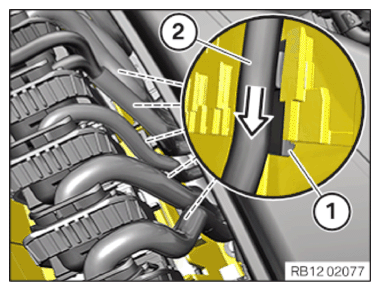

• Insert and lock the wiring harness section (2) in arrow direction.

  The lock (1) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

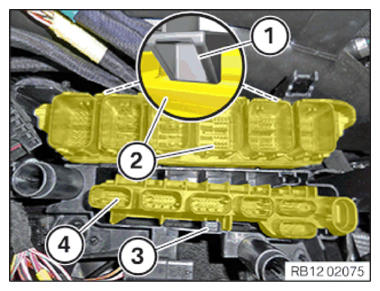

• Insert and install the integrated power supply module (PDM) (4).

  The lock (3) must audibly engage.

• Feed in and install DME control unit (2).

  The locks (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

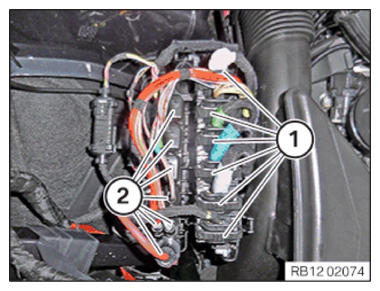

• Connect connectors (2) and lock.

  The connectors (2) must engage audibly.

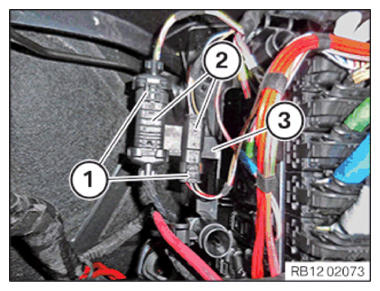

• Connect connectors (1) and lock.

  The connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

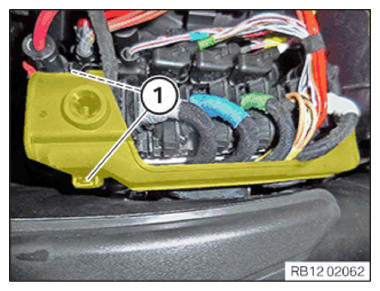

• Attach the connector (2) to the holder (3) and lock.

  The connectors (2) must engage audibly.

• Connect connectors (1) and lock.

  The connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

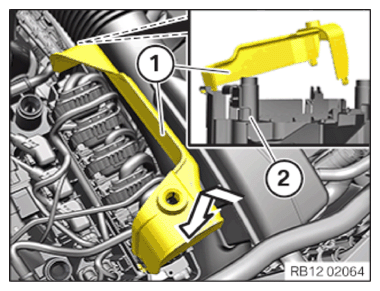

• Feed in the cover (1) in direction of arrow on the bracket (2) and install it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Ensure that the locking mechanisms (1) engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER FOR THE RIGHT DME CONTROL UNIT .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
