When replacing the module bracket on the front door: Remount components

Preliminary work

• Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to REMOVING THE MIRROR TRIANGLE COVER . .
• Refer to REMOVING FRONT DOOR TRIM PANEL .
• Refer to REMOVING THE EXTERIOR MIRROR ON THE FRONT DOOR .
• Refer to REMOVING THE WINDOW CHANNEL STRIP ON THE OUTSIDE OF THE FRONT DOOR .
• Refer to REMOVING THE MODULE BRACKET FROM THE FRONT DOOR .

Removing airbag sensor from the front door

• Unlock plug connection (1) and disconnect.
• Unlock the latch mechanism (2).
• Turn and remove airbag sensor (3) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing flat motor for the front power windows

• Release wiring harness with the detents (1).
• Lift the sound insulation (2) in the area of the flat motor.
• Unlock plug connection (3) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out and remove the sound insulation (1) at the openings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Undo screws (1) and remove the flat motor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

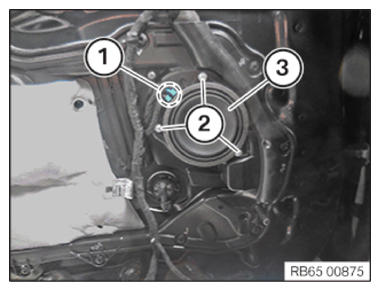

Remove the mid-range speaker from the front door

• Disconnect plug connection (1).
• Loosen screws (2).
• Remove the mid-range speaker (3).

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the module bracket on the front door.

  Parts:  Module bracket

Installing airbag sensor in the front door

• Correctly position the airbag sensor (3) and turn it in the direction of the arrow until the detent (2) engages.
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing flat motor for front power windows

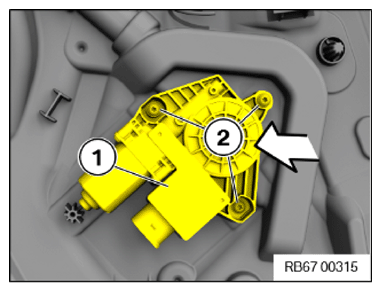

• Correctly position the flat motor (1) and tighten screws (2).

Flat motor to module carrier
Thermoplastic screw	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the sound insulation (1) at the openings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

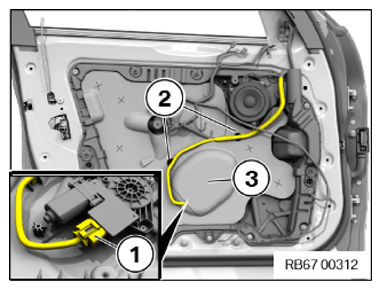

• Connect connectors (1) and lock.
• Clip in the wiring harness with the detents (2).
• Mount sound insulation (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the mid-range speaker in the front door

• Position the mid-range speaker (3).
• Tighten screws (2).

Loudspeaker to dashboard/loudspeaker to door
screw	Tightening torque	1.8 Nm

• Connect plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE MODULE BRACKET ON THE FRONT DOOR .
• Refer to INSTALLING THE WINDOW CHANNEL STRIP ON THE FRONT DOOR ON THE OUTSIDE .
• Refer to MOUNTING THE OUTSIDE REARVIEW MIRROR ONTO THE FRONT DOOR .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to MOUNTING MIRROR TRIANGLE COVER .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
