Install front door trim panel

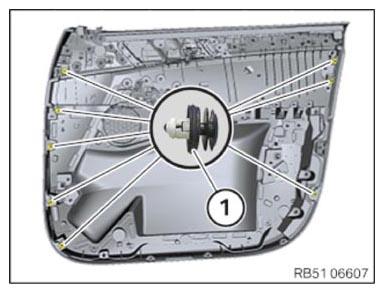

• Check the clips (1) for damage.
• Replace damaged or missing clips (1).

  The clips (1) must not be engaged. The disengaged state is shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the door trim panel.
• Attach the Bowden cable of the door opener (1) on the door lock (3).
• Attach the Bowden cable of the door opener (1) on the counter support (2).
• Connect connectors (4) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the door trim panel (1) on the window channel strip.
• Clip in the door trim panel (1) onto the clips.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

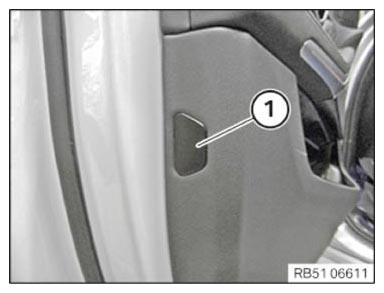

• Tighten down screw.

• Mount the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• The step can be omitted for the G05 security vehicle  .
• Tighten down screw (2).

• Mount the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw.

• Mount the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws in the handle recess (G05/G07)

• Tighten down screws (2).

• Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to MOUNTING MIRROR TRIANGLE COVER .
