Installing the front flashing beacon

NOTE: Description is for left component only. Procedure on the right side is identical.

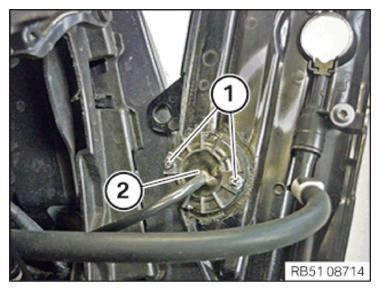

Install the flashing beacon (2) in the holder.
Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

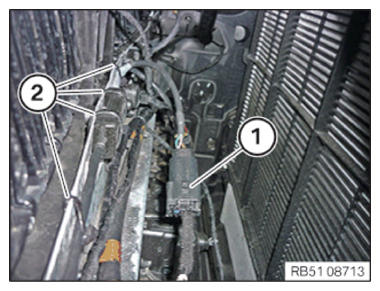

Connect connectors (1) and lock.
Fasten the cable with the cable ties (2).

G14368837

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSERT TOP AUTOMATIC AIR FLAP CONTROL .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT , and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
Refer to INSTALLING BUMPER COVER, FRONT .
Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
