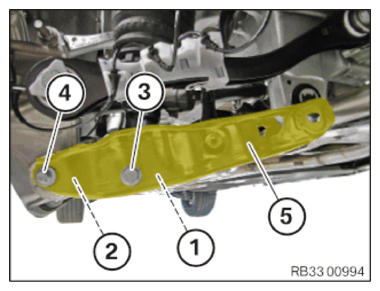

Installing the camber control arm
- Position the camber control arm (5).
- Replace screw (4) and nut (2).
Parts: Bolt and nut
- Insert the screw (4).
- Tighten nut (2).TIGHTENING TORQUE SPECIFICATIONS
Camber control arm to wheel carrier M14
Replace screw and nut.Joining torque 165 Nm Angle of rotation 90° NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION . - Insert screw (3).
- Tighten the nut (1) hand-tight.
The screw connection is replaced and tightened later in the NORMAL POSITION .
NOTE: TECHNICAL INFORMATION
Turning the eccentric bolts to adjust toe and camber may change the vehicle ride height. When replacing the screws, make sure the eccentric bolts are correctly positioned to keep the change in vehicle ride height during the adjustment work to a minimum. - Position the eccentric screw (1) during replacement in a way that the eccentric points vertically upwards!NOTE: TECHNICAL INFORMATION

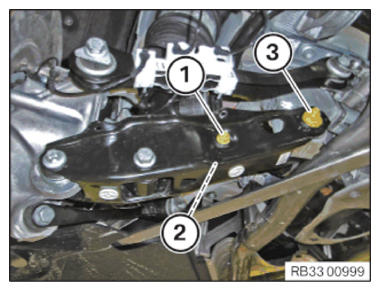

Tighten the screw connection in the NORMAL POSITION . - Press the camber control arm upwards and position on the rear axle support.
- Position the anti-roll bar link on the camber control arm.
- Replace the screw (2) and the nut (1).
Parts: Bolt, nut
- Insert screw (2) from the front.
- Tighten the nut (1) hand-tight.
- Replace the eccentric screw, eccentric washer and nut (3).
Parts: eccentric screw, eccentric washer, nut
- Insert the eccentric screw on the rear axle support.
- Position the eccentric washer and turn nut (3) until hand-tight.
The threaded connections are tightened later in NORMAL POSITION .
Follow-up work
- Refer to INSTALLING THE REAR LEFT WHEEL .
- Refer to IF INSTALLED: ACTIVATING AND FILLING THE AIR SUSPENSION SYSTEM .
- Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION ON THE CAMBER CONTROL ARM .
- Refer to PERFORM CHASSIS ALIGNMENT CHECK .
- Refer to INSTALL THE COVER OF THE CAMBER CONTROL ARM .
