Measuring the ride height of rear axle and adjusting the normal position
- Set vehicle on its wheels (for example, workshop pit or vehicle lift for Kinematics Diagnosis System).
- If installed: Deactivate air spring system.

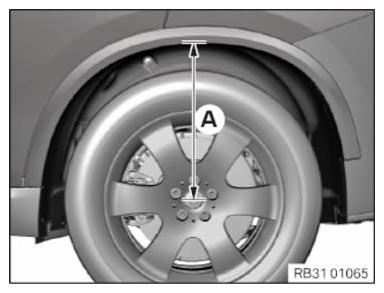

- Measure the ride height (A).
- Load or unload the vehicle until the ride height (A) is within the tolerance.
TECHNICAL DATA SPECIFICATIONS
| G05: Four-wheel drive/rear-wheel drive, steel spring | ||
| Measured from center of wheel hub to lower edge of wheel well | Dimension A | 451 +10-10 mm |
TECHNICAL DATA SPECIFICATIONS
| G05: Four-wheel drive/rear-wheel drive, air spring | ||
| Measured from center of wheel hub to lower edge of wheel well | Dimension A | 454 +10-10 mm |
