Installing the drive for the seat angle adjustment

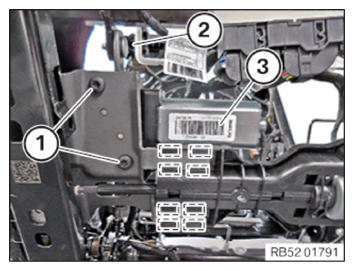

• Carefully feed in the drive for seat angle adjustment (3) into the marked retaining lugs.
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Drive for seat angle adjustment on seat structure
  M8 screw	Tightening torque	23 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Drive for seat angle adjustment on seat structure
  M6 screw	Tightening torque	8 Nm

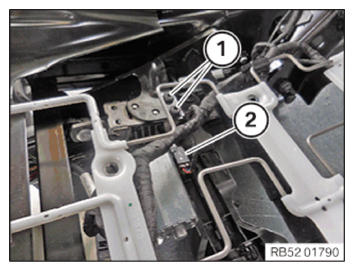

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Drive for seat angle adjustment on seat structure
  M6 screw	Tightening torque	8 Nm

• Connect plug connection (2) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SEAT COVER WITH CUSHION AT LEFT .
• Refer to INSTALLING INSIDE COVER ON REAR SEAT .
• Refer to INSTALLING THE OUTER COVER ON THE REAR SEAT .
• Refer to INSTALLING THE LEFT HAND SEAT .
