Installing the outer cover on the rear seat

NOTE: Description is for left component only. Procedure on the right side is identical.

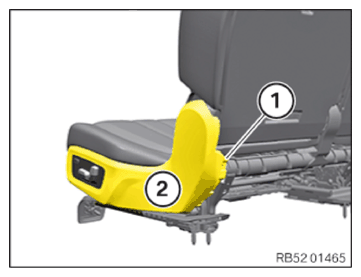

• Check the attachment points on the outer covers (2) for damage; if necessary, replace the outer covers (2).
• Correctly position the outer cover (2) and clip in.
• Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Cover to seat frame
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

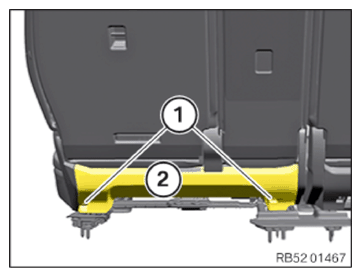

• Check the attachment points of the covers (2) for damage; if necessary, replace the covers (2).
• Correctly position the cover (2) and clip in.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Cover to seat frame
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

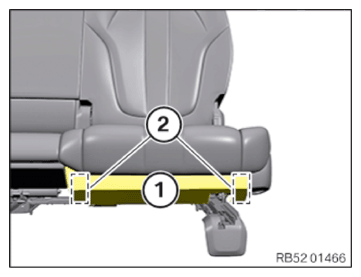

• Check the attachment points of the covers (1) for damage; if necessary, replace the covers (1).
• Correctly position the cover (1) and clip in at the marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
