Installing the exhaust turbocharger (cylinder head removed)

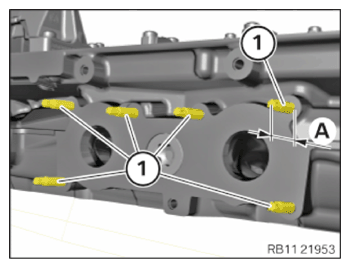

• Check screw-in depth (A)  of the upper stud bolts (1)  .
  TECHNICAL DATA SPECIFICATION



  Screw-in depth of upper stud bolts on cylinder head
  	Dimension A	30 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the surface  .
  The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage  .

  • Do not use any metal-cutting tools.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean the sealing surfaces (1)  on the cylinder head using special tool 0 495 102 (11 4 470) .
• Replace gaskets.

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the seals (1)  on the cylinder head.
• Make sure the seals (1)  are positioned correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Damage to the surface  .
  The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage  .

  • Do not use any metal-cutting tools.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean the sealing surfaces on the exhaust turbocharger (1) using special tool  0 495 102 (11 4 470)  .
• Insert and install the exhaust turbocharger (1)  .
• Protect the exhaust turbocharger (1)  from falling.

  Courtesy of BMW OF NORTH AMERICA, INC.

• When replacing nut (1)  , use the changed version of nut (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nuts (1)  .

  Parts:  Nuts

• Insert the nuts (1)  .
  NOTE: Insert nuts in 360 degree increments.

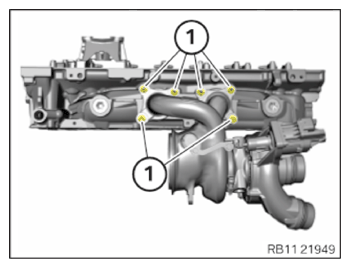

• Tighten nuts (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Exhaust turbocharger to cylinder head
  M7 Replace nuts.	1. Snug torque	5 Nm
  	2. Tightening torque	18 Nm
  	3. Tightening torque	18 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the heat shield (2)  .
• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
