Installing The Engine Compartment Lid Hinge, Left

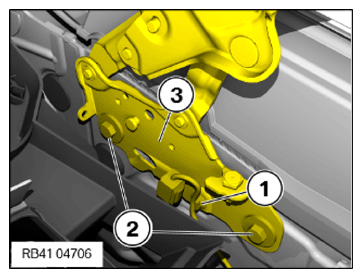

• Position the hood hinge (3).
• Renew screws (2).

  Parts:  screw

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Engine compartment lid hinge to body
  M8 screw Renew screw.
  	tightening torque  28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the cable bracket (1).

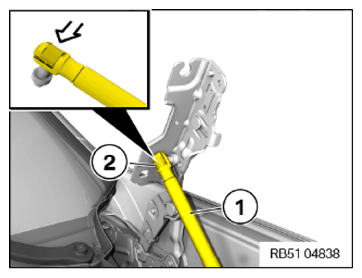

• Place gas spring (1) onto the ball head and engage the lock (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL HOOD .
• Refer to CHECK THE GAP DIMENSION OF THE HOOD .
• Refer to INSTALLING THE ACTUATOR ON THE HOOD HINGE .
• Refer to INSTALLING JET CHAIN PARTIALLY .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to 6100... NOTES FOR DISCONNECTING AND CONNECTING THE VEHICLE BATTERY (ALL X5 MODELS, 2019-2022) .
