Install brake guard plate, front

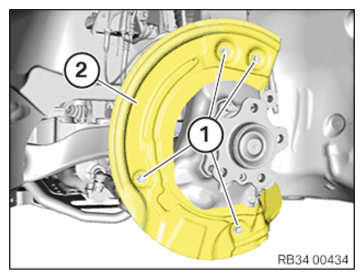

- Install brake guard plate (2) .
- Replace screws (1)
.
Parts: Screws
- Insert screws (1)
and tighten.TIGHTENING TORQUES SPECIFICATIONS
Brake guard plate at front swivel bearing M6x12
Replace screw.tightening torque 8 Nm
Follow-up work
- Refer to INSTALLING THE FRONT BRAKE DISCS .
- Refer to GREASE THE BRAKE PADS, THE BRAKE ANCHOR PLATE AND THE BRAKE CALIPER WITH THE BRAKE PAD PASTE .
- Refer to INSTALLING FRONT BRAKE PADS .
- Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to COMMISSIONING/BEDDING IN (BRAKE) NEW BRAKE PADS AND BRAKE DISCS .
