Install front brake pads (17-inch low brake)

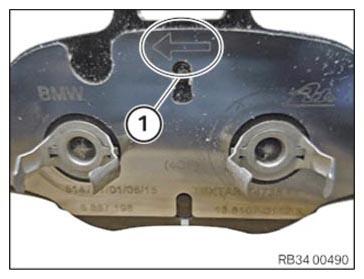

• Observe direction of rotation of brake pads.

  The arrow (1) must always point upward in the direction of the vent valve.

  Courtesy of BMW OF NORTH AMERICA, INC.

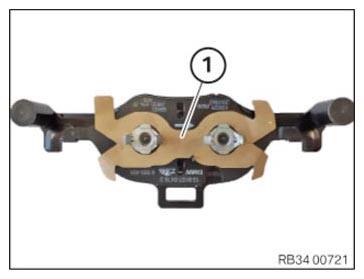

• Remove the protective film of the adhesive layer (1) at the brake pads.

  The adhesive layer (1) must not be touched.

  Courtesy of BMW OF NORTH AMERICA, INC.

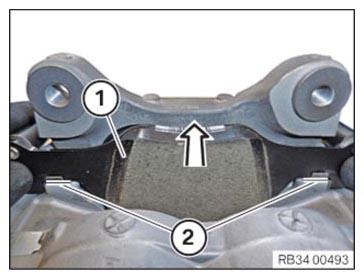

• First place the brake pads (1) completely on the hammerhead guides (2).
• Press the brake pads (1) into the brake caliper in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check fit of slide plate (1) and correct if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

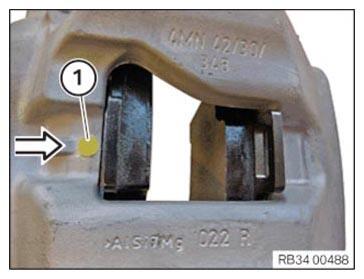

• Remove the special tool (cable tie) 2 413 317.

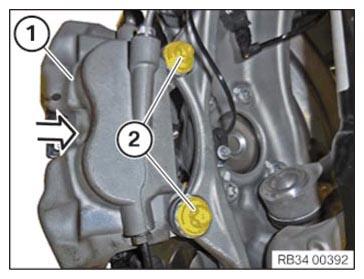

• Install the brake caliper (1) in the arrow direction.
• Replace screws.

  Parts:  Screws

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATIONS



  Brake caliper/brake anchor plate at front swivel bearing
  M12 Replace screw.	Tightening torque	130 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

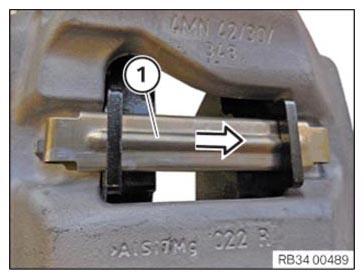

• Replace the carriage spring.

  Parts:  Carriage spring

  The carriage spring must be replaced after each disassembly.

• Insert the carriage spring in the arrow direction (from the center of vehicle to the vehicle exterior).

  The carriage spring must snap into the lock (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

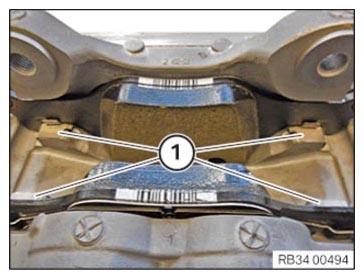

• Check that the carriage spring (1) locks correctly in the lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BRAKE PAD WEAR SENSOR .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to COMMISSIONING/BEDDING IN (BRAKE) NEW BRAKE PADS AND BRAKE DISCS .
