Removing the cylinder head cover
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Working on fuel system.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
CAUTION:
On releasing high pressure line, fuel may emerge at high speed.
Injury hazard!
Injury hazard!
- Wear suitable personal protective equipment.
- Before performing any installation work, allow cooling system to cool down to less than 40°C.
- Note warnings on cylinder head cover.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING THE TENSION STRUT AT THE SHOCK TOWER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE FIREWALL UPPER PART .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING RIGHT SEALING FRAME .
- Refer to REMOVING THE SECOND FIREWALL AT THE BOTTOM .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING RESONATOR .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to REMOVING IGNITION COILS .
- Refer to REMOVING THE CYLINDER HEAD COVER ACOUSTIC COVER .
- Refer to REMOVING THE HIGH PRESSURE LINE BETWEEN THE HIGH PRESSURE PUMP AND THE RAIL .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING HIGH PRESSURE PUMP .
- Refer to REMOVING HIGH-PRESSURE RAIL .
- Refer to REMOVING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to REMOVING BOTH ACTUATORS .

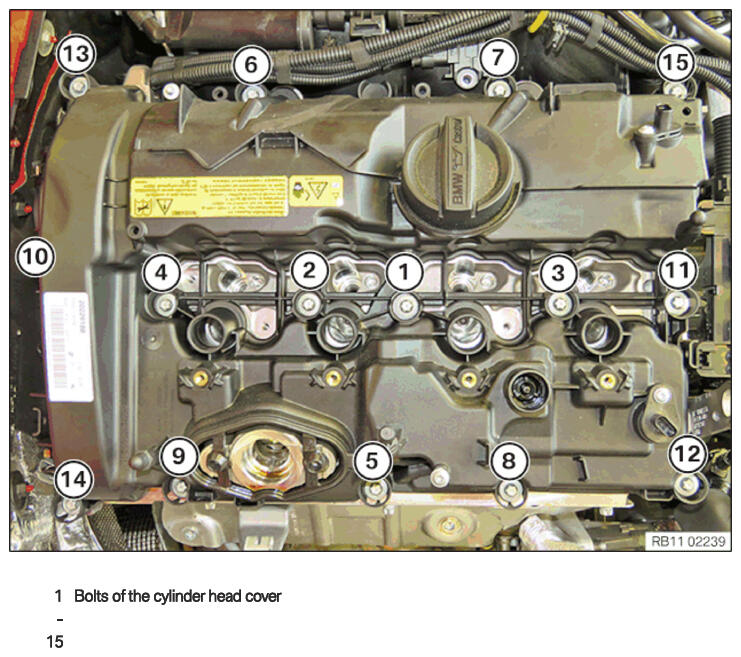

Bolts of the cylinder head cover
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Have a rag ready and make sure that no motor oil drips onto the belt drive.
- Loosen screw (1).
- Detach the oil feed line (2).
- Unlock and detach the engine wiring harness (1) in the highlighted areas.
- Unhook the two oxygen sensor cables (1) in the marked areas.
- Detach the positive battery cable (2) in the highlighted area.
- Unlock both plug connections (1) and disconnect.
- Unlock and pull off the engine ventilation line (2).
- Detach the engine wiring harness (3) in the highlighted area.
- Loosen both oxygen sensor connectors (1) from the carrier plate.
- Release screw (2) and keep the carrier plate aside.
- Detach the cables in the marked areas.
- Detach the engine wiring harness (3) in the highlighted area.
- Release screw (4) and keep the fuel supply line aside.
- Release the screws in the order from (15) to (1).
- Remove cylinder head cover.
