Remove resonator
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

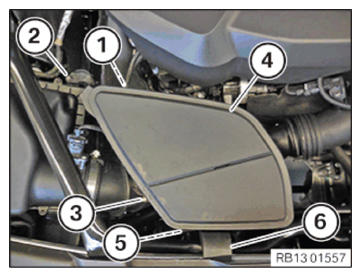

- Loosen clamp (1).
- Loosen screw (2).
- Unfasten clamp (3).
- Make sure that the holder (6) is not damaged while removing the resonator (4).
- Feed the resonator (4) out of the rubber mount (5) out to the top and remove.
