Install bumper cover upper section at front

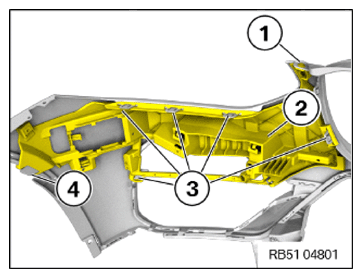

• Slip fog light support (2)  into guide (4)  of bumper cover upper section and clip into detents (3)  .
• Clip in the expanding rivet (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

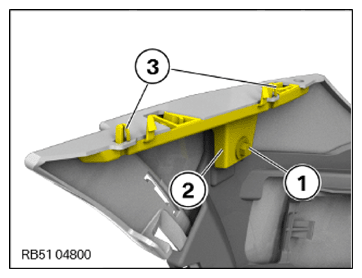

• Clip bumper brackets (2)  into detents (3)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

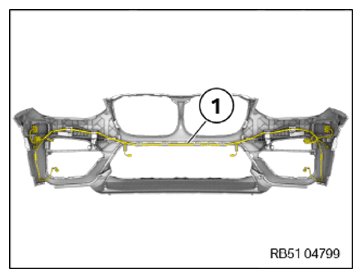

• Insert vehicle wiring harness (1)  into guides of bumper cover upper section.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LEFT AND RIGHT ORNAMENTAL GRILLE ON THE FRONT BUMPER COVER ON THE SIDE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT TRIM STRIP .
• Refer to INSTALLING THE BUMPER COVER LOWER SECTION .
• Refer to INSTALLING THE ORNAMENTAL GRILLE OF THE FRONT BUMPER COVER .
• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to PARTIALLY INSTALLING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
• Refer to PARTIALLY INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
