Install front ornamental grille

Precondition

Engine compartment lid is open.

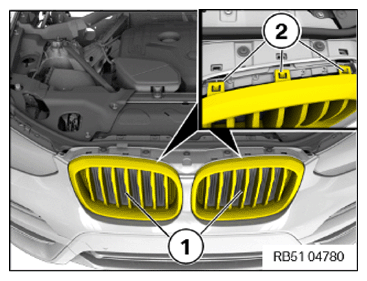

Check all detents for damage; if necessary, replace the front ornamental grille (1).
Position the front ornamental grille (1) and clip it into all detents (2) facing the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

Engine compartment lid is open.

Check all detents for damage; if necessary, replace the front ornamental grille (1).

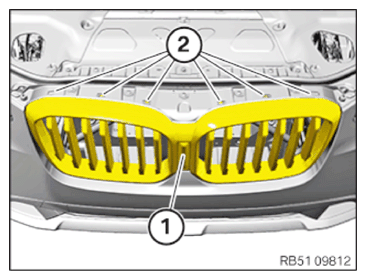

Fit radiator grille (1) and engage in into the detents at the bottom.
Engage radiator grille (1) into detents (2).
