Installing the alternator
- To make it easier to install the alternator, press the threaded support bushing (2) together a little in the arrow direction.
- Screw the screw (1) into the threaded support bushing (2).
- Press back the threaded support bushing (2) using the bolt (1).
- Once again unscrew the screw (1) from the threaded support bushing (2).

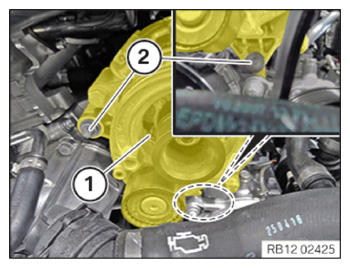

- Maneuver and install the alternator (1).
- Tighten the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Alternator on component carrier | ||
|---|---|---|
| M10x75 | Tightening torque | 38 Nm |
| M10x125 | Tightening torque | 38 Nm |
| M10x90 | Tightening torque | 38 Nm |

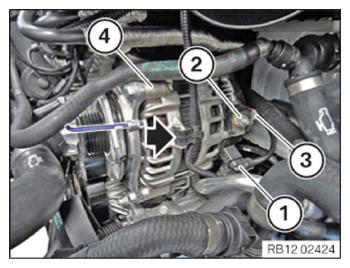

- Fasten the clamp (arrow) to the alternator (4).
- Feed in and position the positive battery cable (3).
- Tighten nut (2).
TIGHTENING TORQUES SPECIFICATION
| Positive battery cable to the alternator | ||
|---|---|---|
| M8 | Tightening torque | 19 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

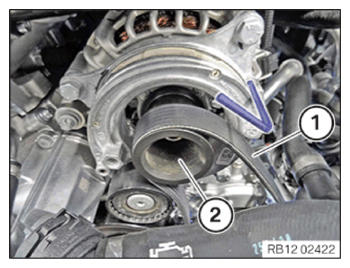

- Place drive belt (1) on the belt pulley (2) of the alternator.

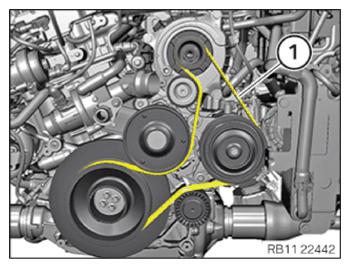

- Check that the drive belt for alternator (1) is seated correctly.

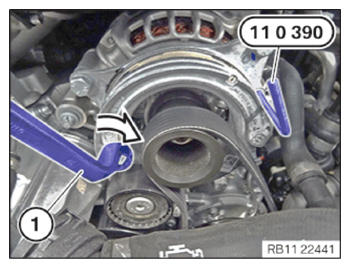

- Increase the preload with standard tools (1) on the belt tensioner in arrow direction.
- Feed out the special tool 0 496 268 (11 0 390) from the belt tensioner and remove.
Follow-up work
- Refer to INSTALLING THE LEFT AIR DUCT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER PANEL OF THE ENGINE COMPARTMENT ON THE REAR LEFT AND RIGHT .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to WHEN REPLACING THE ALTERNATOR/ALTERNATOR REGULATOR: RESET GENERATOR STATISTICAL DATA .
