Installing the charge air duct

• Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.
• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Seal

  Parts:  Seal

• Install the seal dry without lubricant or mounting agent.

Courtesy of BMW OF NORTH AMERICA, INC.

• Thread in seal and install.
• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

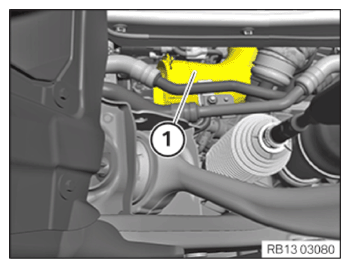

• Guide out and remove charge air duct (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

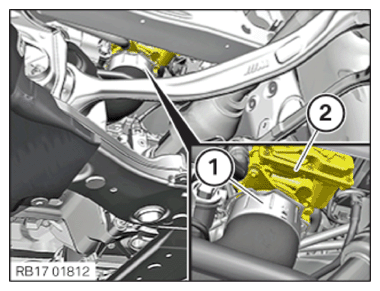

• Connect the charge air line (1) to the throttle valve (2) and lock it.

  The charge air line (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CHARGE AIR CROSSING .
• Refer to INSTALLING CHARGE AIR DUCT OF CYLINDERS 4 TO 6 .
• Refer to INSTALLING CHARGE AIR DUCT OF CYLINDERS 1 TO 3 .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER PANEL OF THE ENGINE COMPARTMENT ON THE REAR LEFT AND RIGHT .
• Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
• Refer to SECURING THE ENGINE OIL COOLER .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
