Installing the tail light on the left and right side panel

• Install the tail light on the side panel

  Check

• Check the threaded bolt (1)  and the seal (2)  for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The threaded bolt (1)  or the seal (2)  is damaged.

  Measure

• Replace the rear light on the side panel (3)  .

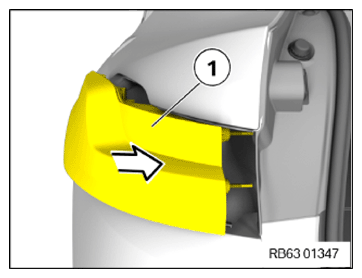

• Insert the tail light on the side panel (1)  in the arrow direction and press upwards so that it is flush with the body.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Side panel tail light to body
  Combination hexagon nut	Tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (2)  and lock.

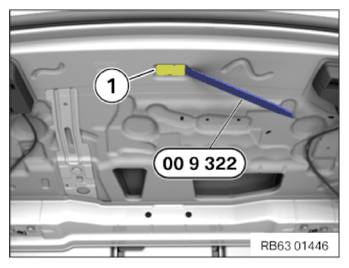

• Insert plug (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BOTH BOTTOM D-PILLAR TRIM PANELS .
• Refer to INSTALLING THE LEFT AND RIGHT FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL .
