Installing the left and right flap in the luggage compartment trim panel

Check

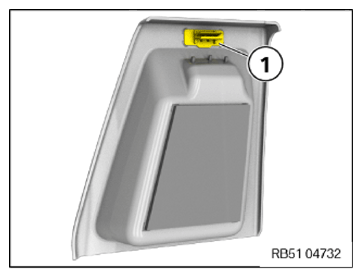

• Check the detent (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detent (1) is damaged.

Measure

• Replace the flap in the luggage compartment trim panel.

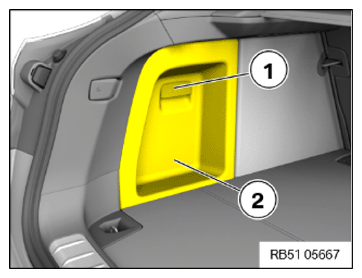

• Position the flap (2) in the luggage compartment trim panel and snap it in using the handle (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the flap in the right luggage compartment trim panel

  Check

• Check the detent (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detent (1) is damaged.

Measure

• Replace the flap in the luggage compartment trim panel.

Parts:  flap

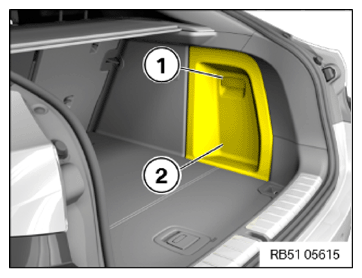

• Position the flap (2) in the luggage compartment trim panel and lock in place using the handle (1).

Courtesy of BMW OF NORTH AMERICA, INC.
