Installing both bottom D-pillar trim panels

NOTE: Description is for left component only. Procedure on the right side is identical.

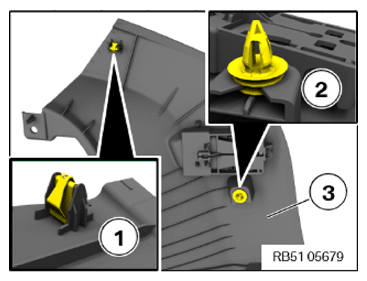

• Check the clamp (1) and clip (2) on the D-pillar trim panel (3) for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the D-pillar trim panel (1) under the sealing lip of the tailgate seal.

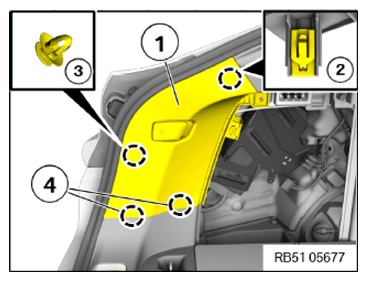

• Position the bottom D-pillar trim panel (1) in the guides (4) and lock in place with the clip (3) and clamp (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

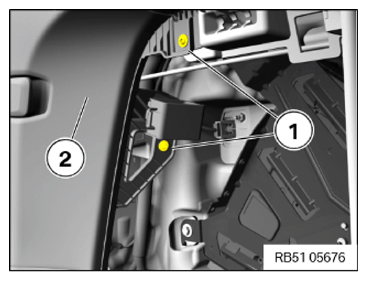

• Tighten the screws (1) on the bottom D-pillar trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
