Installing loading edge trim

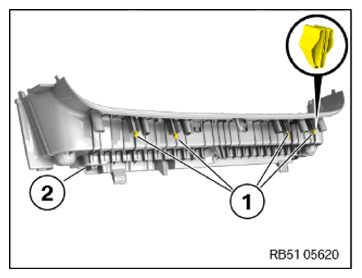

• Check clamps (1)  on loading edge trim (2)  for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

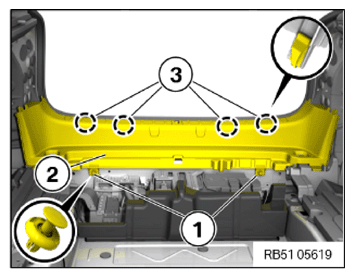

• Feed loading edge trim (2)  in beneath sealing lip of tailgate seal.
• Clip in loading edge trim (2)  with clamps (3)  .
• Secure expanding rivet (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STORAGE TRAY .
• Refer to INSTALLING BOTH BOTTOM D-PILLAR TRIM PANELS .
• Refer to INSTALLING THE LEFT AND RIGHT FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
