Installing fan cowl

• Feed in and install the fan cowl (4) in the direction of the arrow.
• Lock the left and right locks (arrows).
• Connect connector (1) and lock audibly.
• Secure clip (2) on the fan cowl.

  Courtesy of BMW OF NORTH AMERICA, INC.

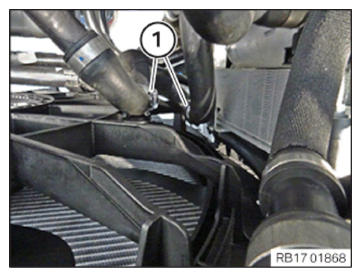

• Secure right bottom coolant line at the fan cowl with the clamp (1).
• Audibly lock the clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

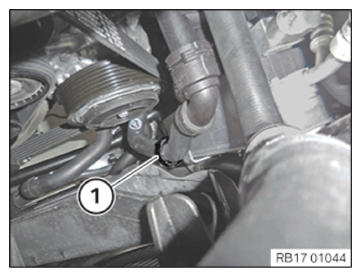

• Secure left bottom coolant line at the fan cowl with the clamp (1).
• Audibly lock the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the coolant line at the air conditioning condenser and use clamps (1) to secure at fan cowl.
• Lock clamps (1) audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
• Secure coolant line at the air conditioning condenser with the clamp (1).
• Audibly lock the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the rear top CROSS CONNECTION .
• Install the left and right hood gasket SEAL .
• Install the rear left and right engine compartment COVER PANEL .
• Install left and right FRONT-END STRUT .
• Install front CROSS CONNECTION .
• Install the top left and right engine compartment COVER .
• Install the front UNDERBODY PROTECTION .
