Install the cover panel of the engine compartment on the rear left and right

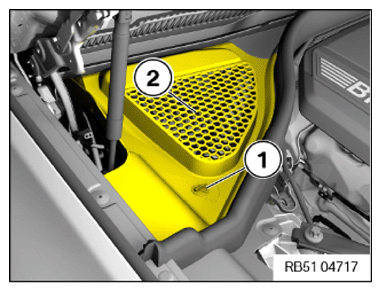

Install the cover of the engine compartment on the rear left

• Install the cover (2).
• Close lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

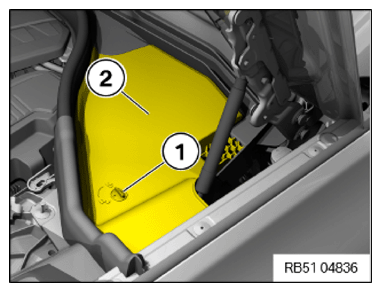

Install the rear right engine compartment cover

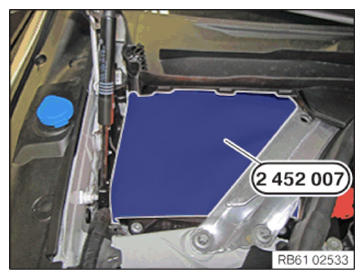

Remove the battery cover

• Remove the special tool 2 452 007  from the battery.

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cover (2).
• Close lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.
