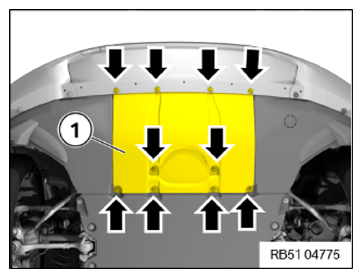

Installing the front underbody protection

• Insert the front underbody protection (1).
• Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Underbody protection
Hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
