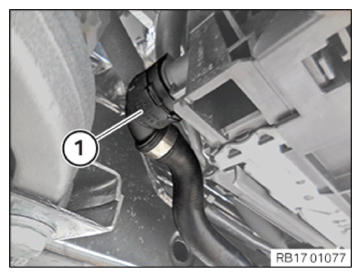

Connecting the coolant line to the radiator

• Connect the coolant line (1) to the radiator at the bottom right and audibly lock it in place.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the front bottom right wheel arch COVER .
• Install the center UNDERBODY PROTECTION .
• Install the front UNDERBODY PROTECTION .
• Fill the HIGH-TEMPERATURE COOLING SYSTEM with the vacuum fill equipment.
• Vent the HIGH-TEMPERATURE COOLANT SYSTEM .
• Check the HIGH-TEMPERATURE COOLING SYSTEM  for water tightness.
