Installing the front bottom right wheel arch cover
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front bottom wheel arch cover

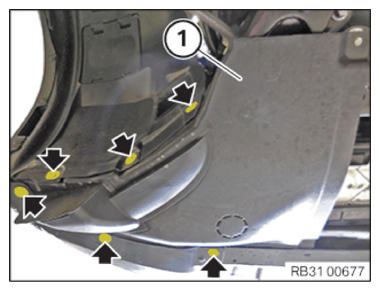

- Guide the wheel arch cover (1) in.
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | |
| Thermoplastic hexagon screw | Tightening torque 3 Nm |
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front bottom wheel arch cover
- Guide the wheel arch cover (1) in.
- Tighten all bolts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | |
| Thermoplastic hexagon screw | Tightening torque 3 Nm |
