Installing Lambda oxygen sensor

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For ADDITIONAL INFORMATION see: 11 00... Overview of consumables in BMW Parts Catalog

NOTE: TECHNICAL INFORMATION
For ADDITIONAL INFORMATION see: 11 00... Overview of consumables in BMW Parts Catalog

Prepare the oxygen sensor.
Do not damage the sensor ceramics.
1. Thread
2. Sensor ceramics
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.

Screw in the Lambda oxygen sensor (1) and tighten with the special tool 0 491 074 (11 7 020).

TIGHTENING TORQUES SPECIFICATION

Lambda control sensor
M18x1.5	Tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

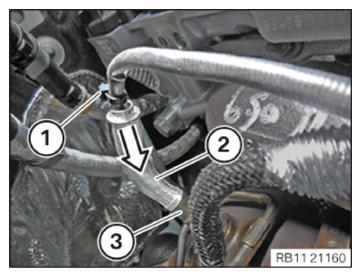

Guide in heat protection (2) in direction of arrow and install.
Make sure that the heat protection (2) is against the stop (3).
Replace the cable ties (1).
Parts: Cable tie
Guide in cable tie (1) and install.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in bracket (2) of positive battery cable and position.
Fasten cable (1) in clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Version A (without mild hybrid technology):
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
Feed in bracket (5) of positive battery cable and position.

Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Holder, positive battery cable to cylinder head cover
6X18	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the positive battery cable (1) at the clamps (2).
Secure the positive battery cable (3) at the clamps (4).
Version B (with mild hybrid technology):
CAUTION:
Improper routing of the positive battery cable.
Risk of short circuits!
- Route the positive battery cable without abrasions and do not trap.
Feed in bracket (3) of positive battery cable and position.

Tighten screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Holder, positive battery cable to cylinder head cover
6X18	Tightening torque	6 Nm

Secure the positive battery cable (1) at the clamps (2).
Guide in connector (2) to carrier plate (3) in the arrow direction and connect it.
Locks (1) must engage audibly.
Secure cable (4) to the clamp (5).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock connector (1).
Guide connector (1) into the carrier plate and connect it.
Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING THE COWL UPPER PART .
Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALLING ACOUSTIC COVER .
