Install tension strut on left and right shock tower
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install tension strut on shock tower
NOTE:
Description is for left component only. Procedure on the right side is identical.

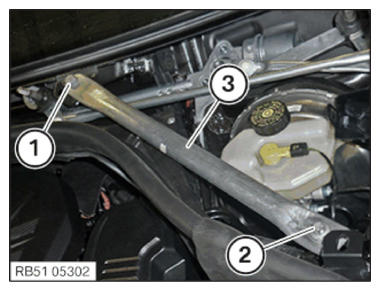

- Install tension strut (3) on the shock tower.
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Tension strut on bulkhead M10x25 screw
Replace screw.Joining torque
56 Nm
Angle of rotation
90° - Replace the screw (2).
Parts: Screw
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Tension strut to shock tower | |
| Torx bolt Replace screw. |
Joining torque 56 Nm Angle of rotation 90° |
Repair thread on the spring bolt
- Repair the damaged thread with a Helicoil thread insert.
CONSUMABLE SPECIFICATION
| Helicoil thread insert | M10x25 mm | 33 30 6 782 756 |
