Remove exhaust turbocharger

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information, see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Preliminary work

Refer to BRING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING THE COWL COVER .
Refer to REMOVING THE TENSION STRUT AT THE SHOCK TOWER ON THE LEFT AND RIGHT .
Refer to REMOVING THE FIRE WALL UPPER PART .
Refer to REMOVING ACOUSTIC COVER AT REAR .
Refer to REMOVING RESONATOR .
Refer to REMOVING CLEAN AIR PIPE .
Refer to REMOVING CHARGE AIR LINE .
Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
Refer to REMOVING EXHAUST SYSTEM .
Refer to REMOVING CATALYTIC CONVERTER .
Refer to DRAIN THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
Refer to CONNECT THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to REMOVING THE COOLANT FEED LINE FOR THE EXHAUST GAS TURBOCHARGER .
Refer to REMOVING THE COOLANT RETURN LINE FOR THE EXHAUST TURBOCHARGER .
Refer to REMOVING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .

NOTE: TECHNICAL INFORMATION
For exhaust turbocharger damage: Check the pressure pipes, charge air cooler and intake plenum for foreign matter, damage and correct functionality.
If the oil return line is exchanged, then the connecting pipe to the oil sump must ALWAYS be cleaned, as the connecting pipe can coke.

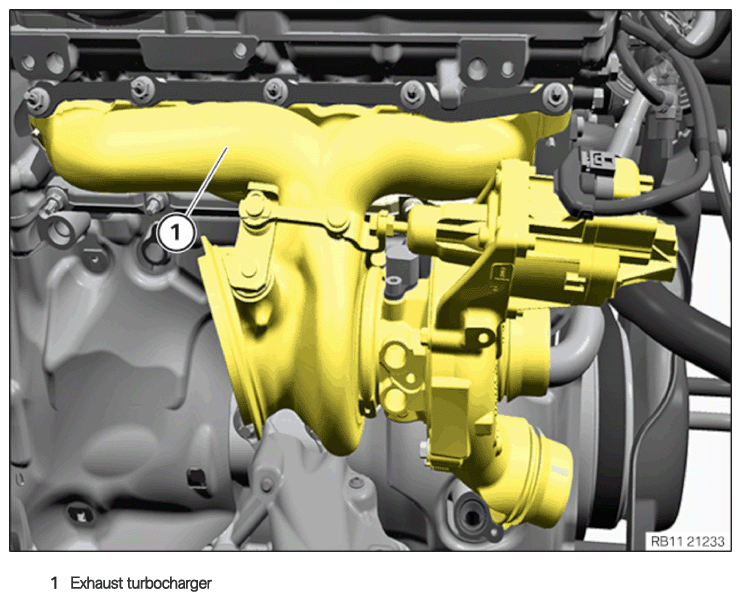

Exhaust turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage of the electric wastegate valve controller.
Excessive force when removing and installing a jammed exhaust turbocharger may damage the electric wastegate valve controller.

Do not pull on the electric wastegate valve controller.
Apply force only at the turbine housing and exhaust manifold.
Do not pull on the compressor housing.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Guide out the heat shield (2) out of the marked area and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Feed out and remove the heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Feed out the oil feed line (2) for the exhaust turbocharger and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Protect the exhaust turbocharger (A) from falling.
NOTE: TECHNICAL INFORMATION Exhaust manifold/exhaust turbocharger is not bolted to the underside, but clamped instead. When removing/replacing the exhaust manifold/exhaust turbocharger, the trim strip remains screwed on.
Release the nut in the sequence (5) to (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove reinforcement plate (1).

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Heavy component. Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
Courtesy of BMW OF NORTH AMERICA, INC.
Feed out the exhaust turbocharger (1) and set it aside.
Feed out the oil feed line (1) for the exhaust turbocharger and set it aside.
Guide out and remove the exhaust turbocharger (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide the seal (1) out of the marked area and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
