Remove the cowl cover
NOTE:
TECHNICAL INFORMATION
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics.
Before installing the cowl cover, it is imperative to check the correct routing and firm fit of the 48V line.
An incorrectly laid or attached 48V line can be damaged by the wiper kinematics.
Preliminary work
- Remove the rear left engine compartment COVER .
- Remove the rear right engine compartment COVER .
- Remove left and right WIPER ARM .

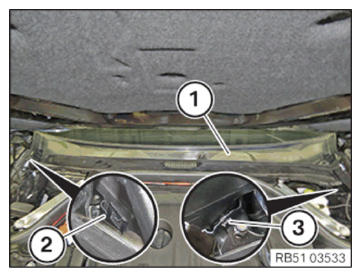

- Release the cowl cover (1) from the detents (2) and (3).
- Detach the cowl cover (1) towards the top, starting from the side.
