Remove tank cover on left and right
NOTE:
The description is for one component only. The procedure is identical for all further components.

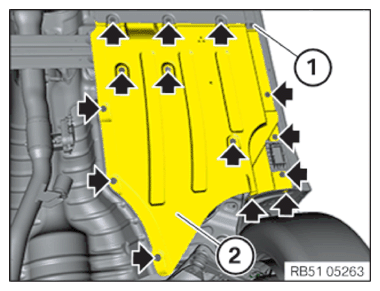

Removing the tank cover
- Release the plastic nut (1).
- Release all bolts (arrows).
- Guide out and remove the tank cover (2).
