Remove catalytic converter

CAUTION: High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see: SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see: NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

Preliminary work

Remove the rear left engine compartment COVER .
Remove the rear right engine compartment COVER .
Remove the hood rear SEAL .
Remove left and right WIPER ARM .
Remove the cowl COVER .
Remove the upper FIREWALL .
Remove the ACOUSTIC COVER .
Remove rear ACOUSTIC COVER .
Remove the lambda OXYGEN SENSOR .
Remove left and right tank COVER .
Remove the tunnel connecting SUPPORT .
Remove EXHAUST SYSTEM .

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

Version A
Loosen screw (1).

Loosen nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:
Loosen nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Pull off the pressure hose (1) in arrow direction and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Feed out V-ribbon clamp (2) on the catalytic converter (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

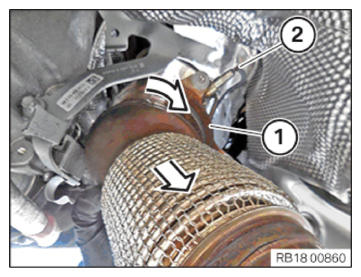

Guide out the catalytic converter (1) in the arrow direction and remove.
Make sure that the oxygen sensor monitor (2) is not damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
