Install rear bumper panel

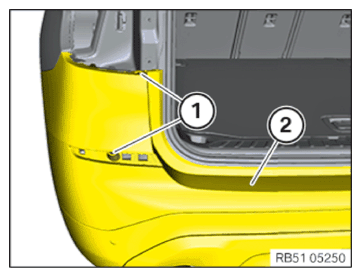

• Install the bumper cover (2) and connect and lock the plug connections.
• Engage the bumper cover (2) at the top into the detents in the side panel area.
  NOTE: Perform the steps on the right and left side.
• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Bumper panel, rear
  Hexagon screw	Tightening torque	2.5 Nm

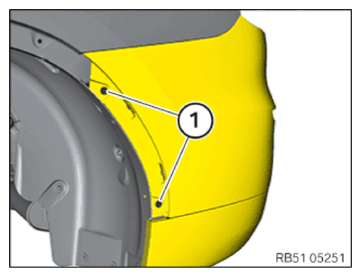

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Bumper panel, rear
  Hexagon screw	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

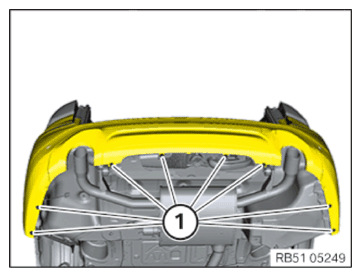

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Bumper panel, rear
  Hexagon screw	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

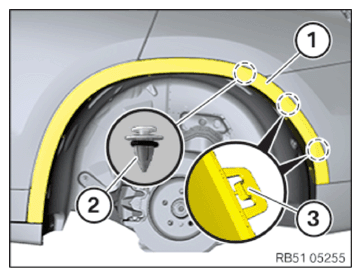

• Check the clip (2), it must not damaged or missing.

  Clip  (2), always install with the sealing ring  .

• Check detents (3), they must not be damaged or missing.
• Clip in the wheel arch trim (1) with the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Engage the wheel arch trim (1) into the detents (3) in the area of the bumper cover.

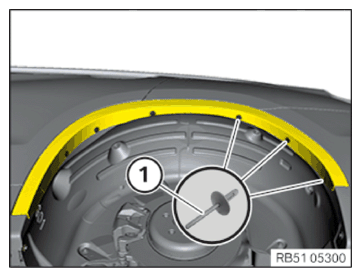

• Mount blind rivet (1) using the special tool 0 496 521 (00 2 230)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the left and right REFLECTOR .
• Install both tail lights on the SIDE PANEL .
• Install the flap in the right luggage compartment TRIM PANEL .
• Install the flap in left luggage compartment TRIM PANEL .
