Installing the left and right reflector

NOTE: Description is for left component only. Procedure on the right side is identical.

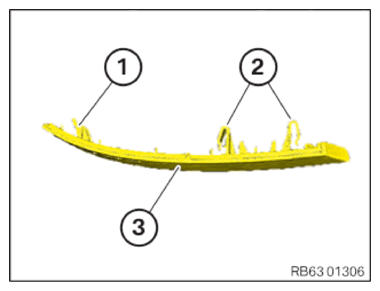

• Check guide (1) and detents (2) on the rear reflector (3) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

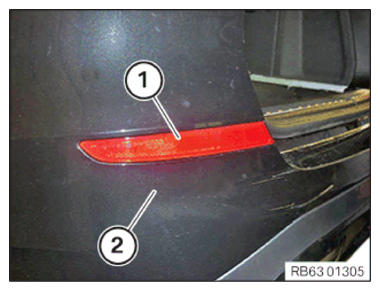

• Position and clip the rear reflector (1) into the bumper cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
