Installing loading edge trim

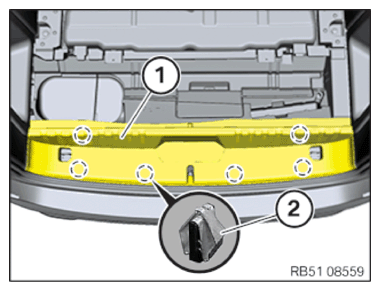

• Check clamp (1) for damage.

  Replace the damaged or missing clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

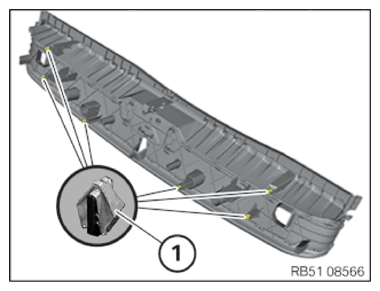

• Feed the loading edge trim (1) into the tailgate seal.
• Correctly position the loading edge trim (1) and clip it into the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install both bottom d-pillar TRIM PANELS .
• Install both flaps in the luggage compartment TRIM PANEL .
• Install luggage compartment FLOOR COVERING .
