Installing both flaps in the luggage compartment trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the flap in the left luggage compartment trim panel

Check

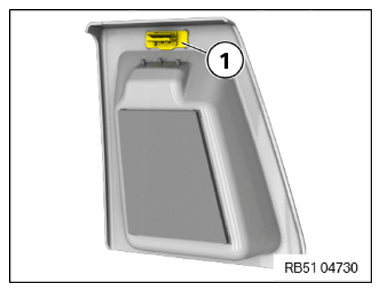

Check the detent (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detent (1) is damaged.

Measure
- Replace flap.

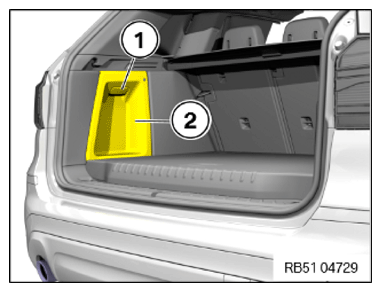

Position the flap (2) in the luggage compartment trim panel and lock in place using the handle (1).

Courtesy of BMW OF NORTH AMERICA, INC.
