Installing loading edge trim

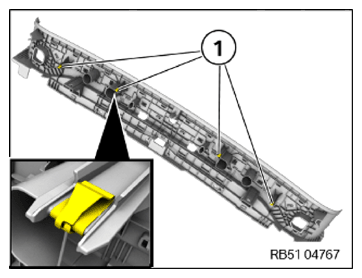

• Check clamps (1) for damage; replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

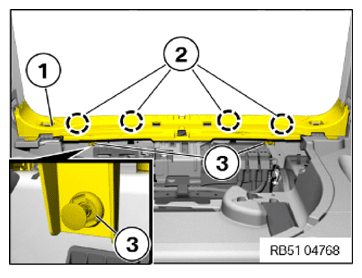

• Feed the loading edge trim (1) under the sealing lip of the trunk lid seal.
• Fit the trim of the loading edge (1) at the detents (2) and clip it in to the bottom.
• Engage expanding rivet (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the rear luggage COMPARTMENT WELL .
• Install both bottom d-pillar TRIM PANELS .
• Install both flaps in the luggage compartment TRIM PANEL .
• Install the luggage compartment FLOOR COVERING .
